Authentication

Last updated: 2026-10-28

The canvas-authorization package provides a complete authentication scaffold for Canvas applications. A single CLI command installs login, registration, and route protection — configured for your template engine automatically.

explanation

Installation

Add the package to your project:

composer require quellabs/canvas-authorization

Run the installer via Sculpt:

php vendor/bin/sculpt install:auth

The installer copies the following files into your project:

  • src/Controllers/AuthenticationController.php — Login, logout, and registration routes
  • src/Controllers/AuthenticatedController.php — Base controller that protects everything extending it
  • src/Errors/AuthErrorHandler.php — Turns authentication failures into a redirect to the login page
  • src/Validation/LoginFormValidator.php — Server-side login validation
  • src/Validation/RegistrationFormValidator.php — Server-side registration validation
  • src/Entities/UserEntity.php — ORM entity representing a user, implementing AccountEligibilityInterface
  • src/Exceptions/UserCreationException.php — Typed exception for registration failures
  • templates/login.{ext} — Login form template
  • templates/registration_form.{ext} — Registration form template

Once installed, these files are yours to modify. Two aspects that do the actual authentication work — SessionAuthenticationAspect and AccountEligibilityAspect — are not copied; your app uses them directly from the package (see The Two Aspects below).

Template Engine Detection

The installer reads config/app.php and copies the correct template stubs for your configured engine:

  • Smarty — login.tpl, registration_form.tpl
  • Blade — login.blade.php, registration_form.blade.php
  • Latte — login.latte, registration_form.latte
  • Twig — login.twig, registration_form.twig

Options

Pass --force to overwrite existing files without being prompted:

php vendor/bin/sculpt install:auth --force

Database Setup

After installation, generate and run the migration to create the users table:

php vendor/bin/sculpt make:migrations
php vendor/bin/sculpt quel:migrate

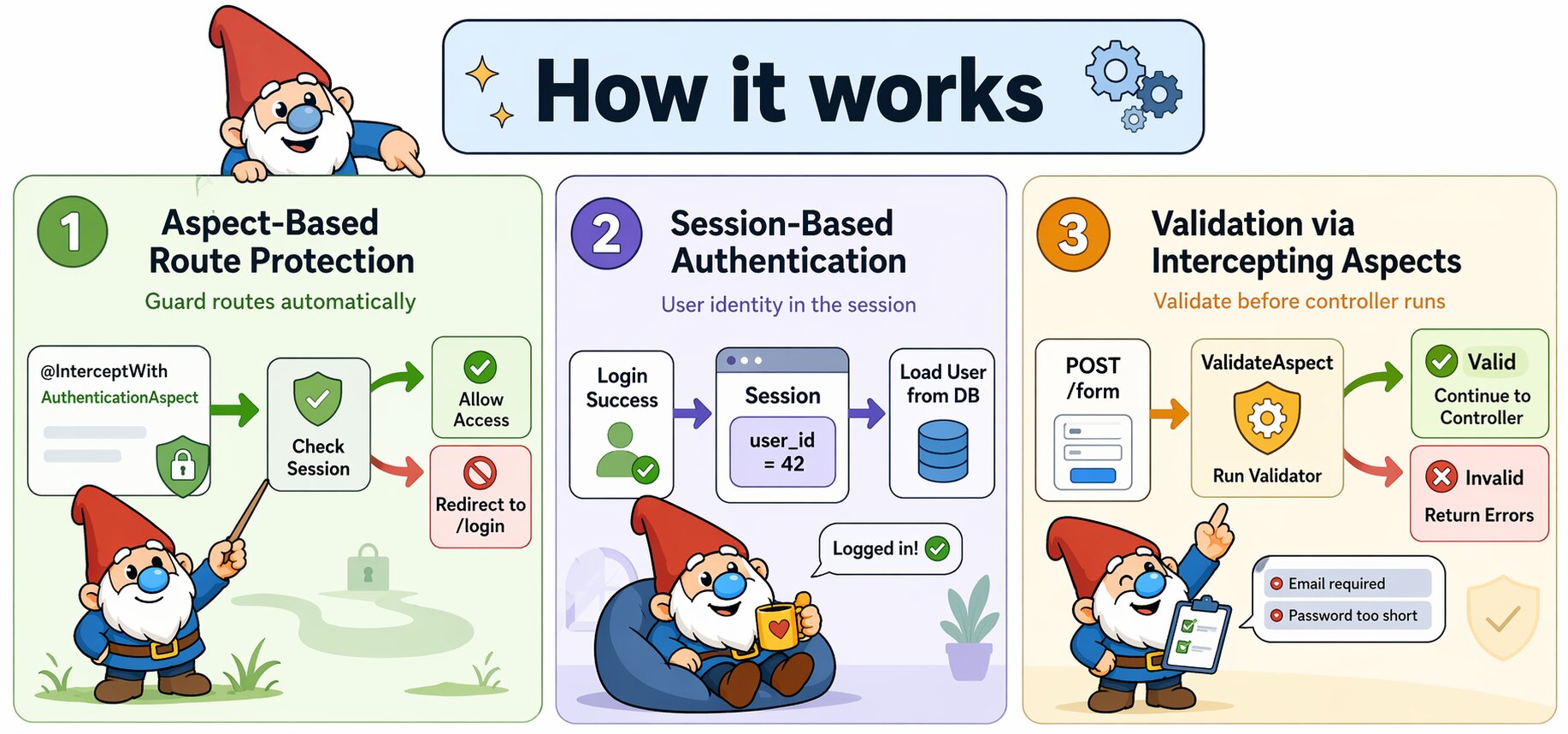

How Authentication Works

Login Flow

The AuthenticationController handles the full login lifecycle:

  1. A GET /login request renders the login form
  2. A POST /login submission is intercepted by ValidateAspect, which runs LoginFormValidator
  3. If validation fails, the form is re-rendered with field-level errors
  4. If validation passes, the username and password are checked against the database
  5. On success, three session keys are written and the user is redirected to /
  6. On failure, the form is re-rendered with a generic error to avoid revealing whether the username or password was wrong
/**
 * Process login form submission
 * @Route("/login", methods={"POST"})
 * @InterceptWith(Quellabs\Canvas\Validation\ValidateAspect::class, validator=App\Validation\LoginFormValidator::class)
 */
public function processLogin(Request $request): Response {
    if (!$request->attributes->get('validation_passed', true)) {
        return $this->render('login.tpl', ['errors' => $request->attributes->get('validation_errors', [])]);
    }

    $username = $request->request->get('username');
    $password = $request->request->get('password');
    $user = $this->findUser($username);

    if (!$user || !$this->checkPassword($password, $user)) {
        return $this->render('login.tpl', ['errors' => ['general' => ['Invalid username or password.']]]);
    }

    $session = $request->getSession();
    $session->set('auth_user_id', $user->getId());
    $session->set('auth_time', time());
    $session->set('auth_methods', ['pwd']);

    return new RedirectResponse('/');
}

Registration Flow

Registration follows the same pattern as login, including writing the same three session keys on success:

  1. A GET /register request renders the registration form
  2. A POST /register submission is intercepted by ValidateAspect with RegistrationFormValidator
  3. Server-side password confirmation is checked after validation
  4. If the username is already taken, the form is re-rendered with an error
  5. On success, the new user is persisted, logged in automatically, and redirected to /

Session Management

Authentication state is stored in the session under three keys. Session handling is provided by Symfony HttpFoundation — Canvas uses its defaults without wrapping or extending the session layer:

Session keyTypeMeaning
auth_user_idmixedThe authenticated user's identifier. Absence means "not logged in."
auth_timeintUnix timestamp of when the credential was proven at login.
auth_methodsstring[]Methods used at login (RFC 8176 names, e.g. pwd). Consumed by step-up authentication.
// Login — store user identity and when/how it was proven
$session = $request->getSession();
$session->set('auth_user_id', $user->getId());
$session->set('auth_time', time());
$session->set('auth_methods', ['pwd']);
$session->migrate(); // regenerate the session ID — neither aspect does this for you

// Logout — clear all session data
$request->getSession()->clear();

auth_time/auth_methods exist specifically so Quellabs\Canvas\Security\StepUpAuthenticationAspect can require a recent credential proof for sensitive actions — see Step-Up Authentication (Sudo Mode).

Protecting Routes

Extend AuthenticatedController instead of BaseController to protect every action in a controller:

class DashboardController extends App\Controllers\AuthenticatedController {

    /**
     * @Route("/dashboard", methods={"GET"})
     */
    public function index(): Response {
        return $this->render('dashboard.tpl');
    }
}

AuthenticatedController declares its aspects at the class level, so every controller that extends it — and every method in it — is protected automatically, with nothing to declare per route:

/**
 * @InterceptWith(Quellabs\CanvasAuthorization\SessionAuthenticationAspect::class, throwOnFailure=true)
 * @InterceptWith(Quellabs\CanvasAuthorization\AccountEligibilityAspect::class, userEntityClass=App\Entities\UserEntity::class, throwOnFailure=true)
 */
abstract class AuthenticatedController extends BaseController {
}

@InterceptWith on a class applies through the whole inheritance chain — resolved the same way whether it's declared on a class or a method, so a sensitive method can still stack a further, stricter check on top:

class AccountController extends App\Controllers\AuthenticatedController {

    /**
     * @Route("/account/delete", methods={"POST"})
     * @InterceptWith(Quellabs\Canvas\Security\StepUpAuthenticationAspect::class, maxAge=300, requiredMethods={"pwd"})
     */
    public function deleteAccount(): Response {
        // Only reached with a logged-in, eligible account, authenticated within the last 5 minutes via 'pwd'
    }
}

The Two Aspects Behind AuthenticatedController

AuthenticatedController is not itself a single aspect — it composes two, each with one responsibility, run in this order:

AspectResponsibilityOn success
SessionAuthenticationAspectIs auth_user_id present in the session at all?Publishes session_user_id, auth_time, auth_methods on the request
AccountEligibilityAspectReads session_user_id; is that account still eligible (not banned or deleted)?Lets the request continue

Both are used directly from the package — not copied into your application — so they receive fixes via composer update rather than being frozen at generation time. AccountEligibilityAspect only needs your user entity to implement one method:

namespace Quellabs\CanvasAuthorization\Contracts;

interface AccountEligibilityInterface {
    public function isBanned(): bool;
}

AccountEligibilityAspect re-checks the database at most once per validationInterval seconds (default 300) rather than on every request:

/** @InterceptWith(Quellabs\CanvasAuthorization\AccountEligibilityAspect::class, userEntityClass=App\Entities\UserEntity::class, validationInterval=60, throwOnFailure=true) */

Handling Authentication Failures

Like every authentication aspect in Canvas, neither SessionAuthenticationAspect nor AccountEligibilityAspect builds a Response itself:

  • Attribute mode (default): sets session_error or account_eligibility_error on the request and lets the controller decide how to respond.
  • Exception mode (throwOnFailure=true): throws SessionAuthenticationException or AccountEligibilityException (both HTTP 403/401), which propagates to a registered ErrorHandlerInterface.

AuthenticatedController uses exception mode on both, which is what makes "just extend this class" actually protect a page — the installer scaffolds the handler that turns those exceptions into a redirect:

namespace App\Errors;

use Quellabs\Canvas\Error\ErrorHandlerInterface;
use Quellabs\CanvasAuthorization\Exceptions\AccountEligibilityException;
use Quellabs\CanvasAuthorization\Exceptions\SessionAuthenticationException;
use Symfony\Component\HttpFoundation\RedirectResponse;
use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\HttpFoundation\Response;

class AuthErrorHandler implements ErrorHandlerInterface {

    public static function supports(\Throwable $e): bool {
        return $e instanceof SessionAuthenticationException || $e instanceof AccountEligibilityException;
    }

    public function handle(\Throwable $e, Request $request): Response {
        return new RedirectResponse('/login');
    }
}

This file is copied into src/Errors/ — Canvas discovers ErrorHandlerInterface implementations by scanning that directory (see Error Handlers). Edit it directly if your login route isn't /login, or if you want to log the failure before redirecting.

Accessing the Authenticated User

Read the user ID that SessionAuthenticationAspect published on the request, rather than the session directly:

public function index(Request $request): Response {
    $userId = $request->attributes->get('session_user_id');
    $user = $this->em()->find(UserEntity::class, $userId);

    return $this->render('dashboard.tpl', ['user' => $user]);
}

Customisation

The scaffolded files are standard Canvas classes you're free to modify:

  • UserEntity — Add fields such as email, created_at, or role
  • AuthErrorHandler — Change the redirect target, log failures, or return JSON for an API
  • LoginFormValidator — Adjust validation rules to match your requirements
  • Templates — Restyle to match your application's design

Customizing Eligibility Logic

If AccountEligibilityAspect's constructor parameters and AccountEligibilityInterface aren't enough to express your desired revalidation strategy — for example, checking multiple flags or a subscription status rather than a single isBanned() method — eject a fully editable local copy instead of using the package class:

php vendor/bin/sculpt make:auth-aspect

This copies the aspect's logic into src/Aspects/AccountEligibilityAspect.php. Point AuthenticatedController (or any controller) at App\Aspects\AccountEligibilityAspect::class instead of the package class. It's now your code — it no longer receives fixes or changes from quellabs/canvas-authorization.

File Conflicts

If any of the target files already exist, the installer prompts before overwriting each one. Pass --force to skip prompts and overwrite all files unconditionally.

File already exists: src/Controllers/AuthenticationController.php. Overwrite? [y/N]

See Also

Frequently Asked Questions

Do SessionAuthenticationAspect or AccountEligibilityAspect ever return a Response directly?

No — never. Both only set a request attribute or throw an exception; building the actual redirect or error response is left entirely to your app's ErrorHandlerInterface (the scaffolded AuthErrorHandler) or to your controller reading the attribute. This is a deliberate guarantee, not an implementation detail that might change.

What happens if my user entity doesn't implement AccountEligibilityInterface?

AccountEligibilityAspect throws an InvalidArgumentException immediately when it's constructed — not on the first request that needs re-validation. A configuration mistake like this surfaces right away rather than as a confusing failure deep inside request handling later.

Does Canvas handle session expiry or idle timeout for me?

No — that's intentionally out of scope for SessionAuthenticationAspect. Session lifetime is governed entirely by your session storage's own configuration (e.g. session.gc_maxlifetime), not by anything this package adds.

What happens when AccountEligibilityAspect determines a user is banned or deleted?

It clears the session — auth_user_id, auth_time, auth_methods, and its own revalidation timestamp — in addition to reporting the failure. That effectively logs the user out rather than just blocking the one request that triggered the check.

Is the "once per validationInterval" database re-check tracked globally, or per session?

Per session — the last-validated timestamp is stored in the session itself, not in a shared store keyed by user ID. Logging in again, or on another device, starts that interval fresh rather than inheriting a previous session's timer.

Can I protect a single route instead of an entire controller?

Yes — add the same @InterceptWith annotations directly to one method instead of extending AuthenticatedController. Canvas resolves class-level and method-level @InterceptWith declarations the same way, so there's nothing special about using them outside the scaffolded base controller.

Summary

Canvas authentication is designed to get you started quickly without locking you in:

  • One Command — install:auth scaffolds everything needed for login and registration
  • Engine Aware — Templates copied for your configured engine automatically
  • Single-Responsibility Aspects — Session validity and account eligibility are checked by two separate, package-owned aspects, composed once on a shared base controller
  • Uniform Failure Handling — Every authentication aspect sets a request attribute or throws; nothing builds a Response itself, kept consistent with an app-owned error handler
  • Ejectable When Needed — make:auth-aspect gives you a fully owned copy the moment the package's interface isn't enough
